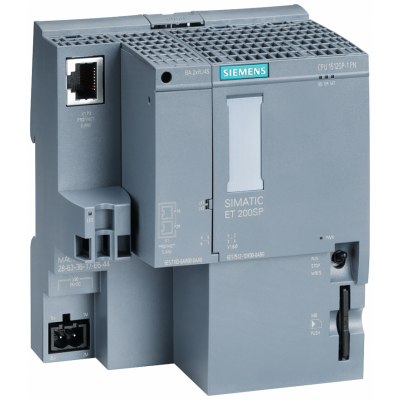

西門子PLC 6ES7512-1DK01-0AB0 CPU 1512SP-1 PN 針對 ET 200SP

點擊圖片查看原圖

品牌：	西門子
系列：	S7-1500 PLC
所在地：	上海
有效期至：	長期有效
最后更新：	2023-11-08 10:16
瀏覽次數：	296

店鋪基本資料信息

SIEMENS西門子PLC模塊專營
[VIP第4年] 指數:4
通過認證 [誠信檔案]
聯系人李剛(先生) 銷售工程師
會員 [當前離線]
電話17312666086
手機17312666086(微信同號)
地區上海
地址上海市寶山區富聯一路98弄6號

產品詳細說明

西門子PLC S7-1500系列

訂貨號：6ES7512-1DK01-0AB0

類型：CPU 1512SP-1 PN 針對 ET 200SP

產品：（7.2***UTO DN）SIMATIC DP，CPU 1512SP-1 PN 針對 ET 200SP，中央處理器，帶主存儲器 200 KB 用于程序及 1MByte 用于數據，第 1 個接口：PROFINET IRT 含 3 端口交換機， 48 ns 比特性能表現，需要 SIMATIC 存儲卡，需要總線適配器用于端口 1 和 2 SIMATIC ET 200SP is a 模塊型, scalable, and highly flexible distributed I/O system. With its small footprint, it is particularly well-suited for installation in small control boxes near the machine. The modules can either be plugged directly into an ET 200SP CPU or connected to a central controller via PROFINET or PROFIBUS. SIMATIC ET 200SP can be expanded with up to 64 I/O modules, which can be inserted in any combination. The system provides a very comprehensive range of modules. Many modules are also available with a wide variety of characteristics, which considerably improve the scalability in regard to functionality and price. Thus, in addition to modules with standard functions (ST), modules with an extended range of functions and diagnostics (HF High Feature / HS High Speed) are also available. For price-sensitive applications, there are modules with basic functions (BA). The advantage of the ET 200SP system is in its ease of application, such as through the free selection of the PROFINET connection technology via the BusAdapter, the tool-free wiring by means of push-in technology, improved accessibility of the wiring due to a new arrangement of the spring releases, in addition to the associated conductor aperture and the channel-precise diagnostic functions. The availability and productivity of the machine are ensured by the capability of swapping modules and terminal boxes during operation, the so-called "hot swapping". Interface modules with integrated CPU and PROFINET connections are available for SIMATIC ET 200SP. The functionality corresponds to that of a CPU of the SIMATIC S7-1500 family. A SIMATIC Memory Card is required for the operation of this module.
